Hiding or Displaying Columns in the Table Visualization



Table visual members can be hidden and displayed again. You can right-click on a column name and select Show/Hide Columns.

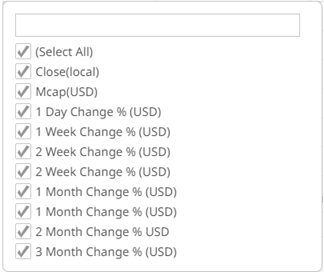

A column control pop-up displays.

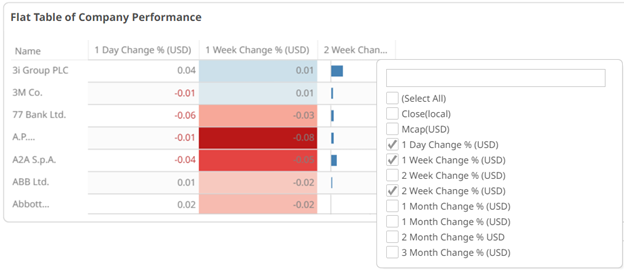

Select the checkboxes of the columns that will be displayed.

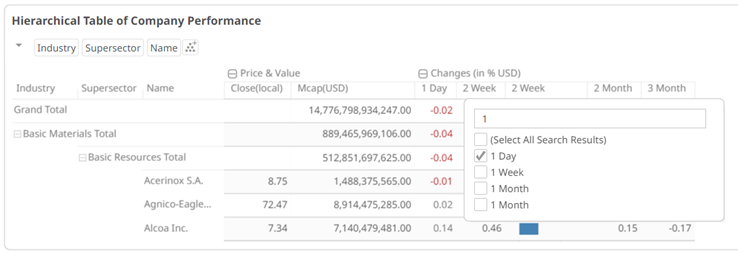

You can also enter a value on the Filter box to search for certain columns. The Select All checkbox becomes Select All Search Results.

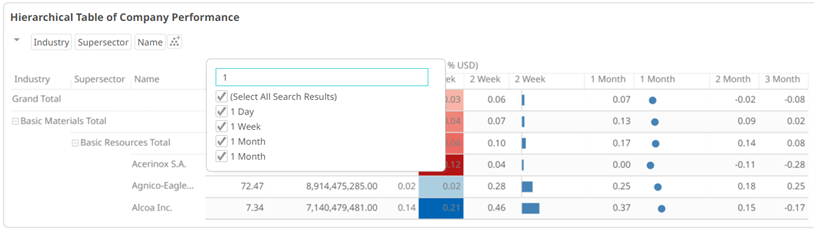

 Proceed in selecting the columns to hide or display.
