Solid Tetrahedron Elements

4-Node Solid Tetrahedron

The Radioss solid tetrahedron element is a 4 node element with one integration point and a linear shape function.

This element has no hourglass. But the drawbacks are the low convergence and the shear locking.

10-Node Solid Tetrahedron

The Radioss solid tetrahedron element is a 10 nodes element with 4 integration points and a quadratic shape function as shown in Figure 1.

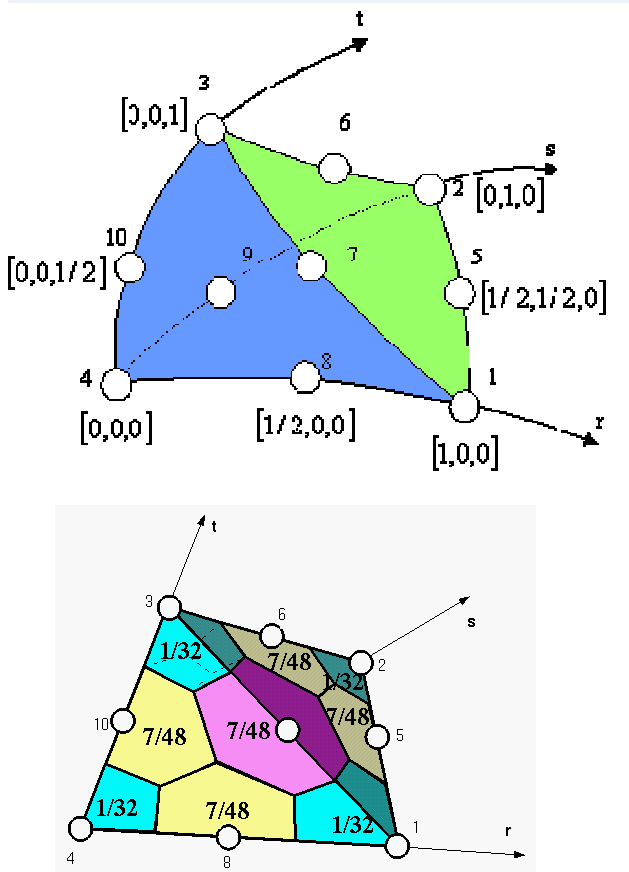

Figure 1. (a) Isoparametric 10 Node Tetrahedron; (b) Nodal Mass Distribution

Introducing volume coordinates in an isoparametric frame:

$L_{1} = r$

$L_{2} = s$

$L_{3} = t$

$L_{4} = 1 - L_{1} - L_{2} - L_{3}$

The shape functions are expressed by:

Φ_{1} = (2 L_{1} - 1) L_{1}

Φ_{2} = (2 L_{2} - 1) L_{2}

Φ_{3} = (2 L_{3} - 1) L_{3}

Φ_{4} = (2 L_{4} - 1) L_{4}

Φ_{5} = 4 L_{1} L_{2}

Φ_{6} = 4 L_{2} L_{3}

Φ_{7} = 4 L_{3} L_{1}

Φ_{8} = 4 L_{1} L_{4}

Φ_{9} = 4 L_{2} L_{4}

Φ_{10} = 4 L_{3} L_{4}

Location of the 4 integration points is expressed by ^¹.


	$L_{1}$	$L_{2}$	$L_{3}$	$L_{4}$
a	$α$	$β$	$β$	$β$
b	$β$	$α$	$β$	$β$
c	$β$	$β$	$α$	$β$
d	$β$	$β$	$β$	$α$

With,

$α = 0 \cdot 58541020$ and $β = 0 \cdot 13819660$ .

a, b, c, and d are the 4 integration points.

Advantages and Limitations

This element has various advantages:

No hourglass
Compatible with powerful mesh generators
Fast convergence
No shear locking.

But there are some drawbacks too:

Low time step
Not compatible with ALE formulation

Time Step

The time step for a regular tetrahedron is computed as:

d t = \frac{L_{c}}{c}

Where,

L_{c}

is the characteristic length of element depending on tetra type. The different types are:

Figure 2. Regular 4 Nodes Tetra

L_{c} = a \sqrt{\frac{2}{3}}; L_{c} = 0.816 a

Figure 3. Regular 10 Nodes Tetra

L_{c} = a \sqrt{\frac{5 / 2}{6}}; L_{c} = 0.264 a

For another regular tetra obtained by the assemblage of four hexa as shown in Figure 4, the characteristic length is:

Figure 4. Other Regular Tetra

L_{c} = a \frac{\sqrt{2 / 3}}{4}; L_{c} = 0.204 a

CPU Cost and Time/Element/Cycle

The CPU cost is shown in Figure 5:

Figure 5. CPU Cost in TEC

Example: Comparison

Below is a comparison of the 3 types of elements (8-nodes brick, 10-nodes tetra and 20-nodes brick). The results are shown in Figure 6 for a plastic strain contour.

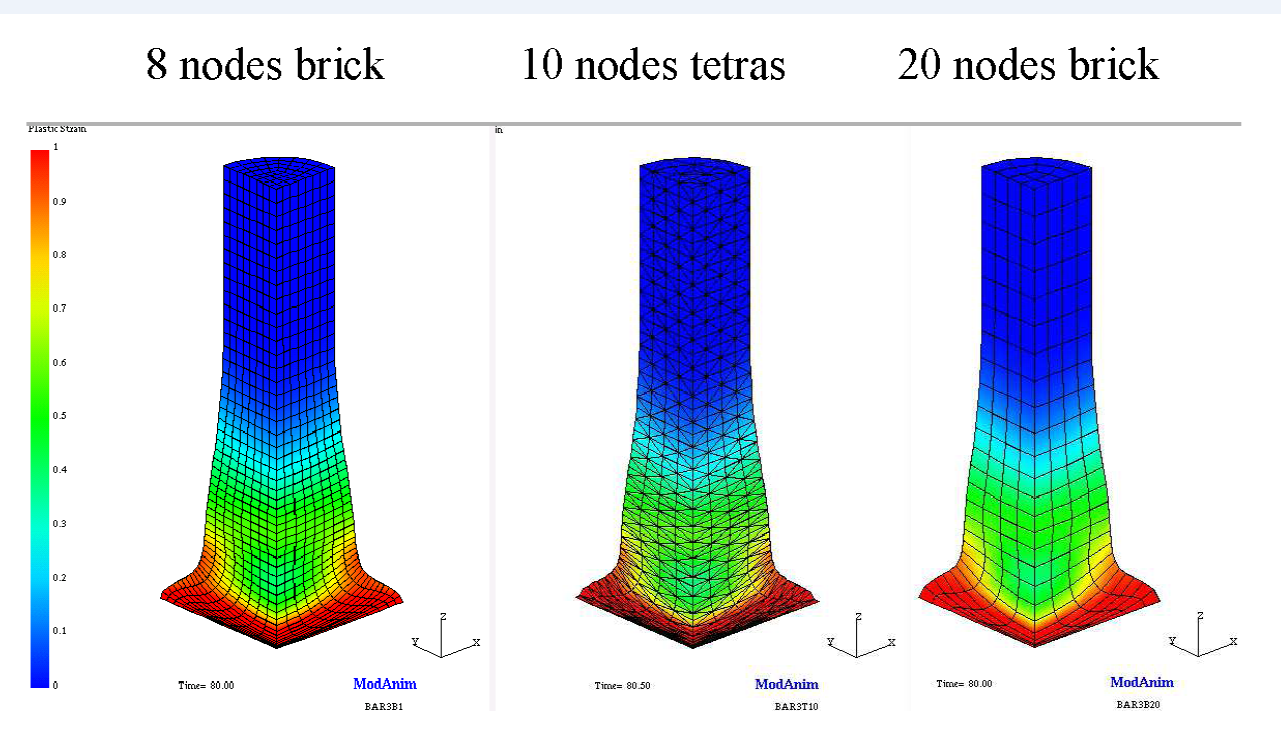

Figure 6. Comparison (plastic strain max = 60%)
