Import Design Variables

In this step, you will import the design variables and set up shape morphing for the Arm model.

  1. In the Define Models tab, click on the Add Model option.
    The Add window opens.
  2. Select Parameterized File and click OK.

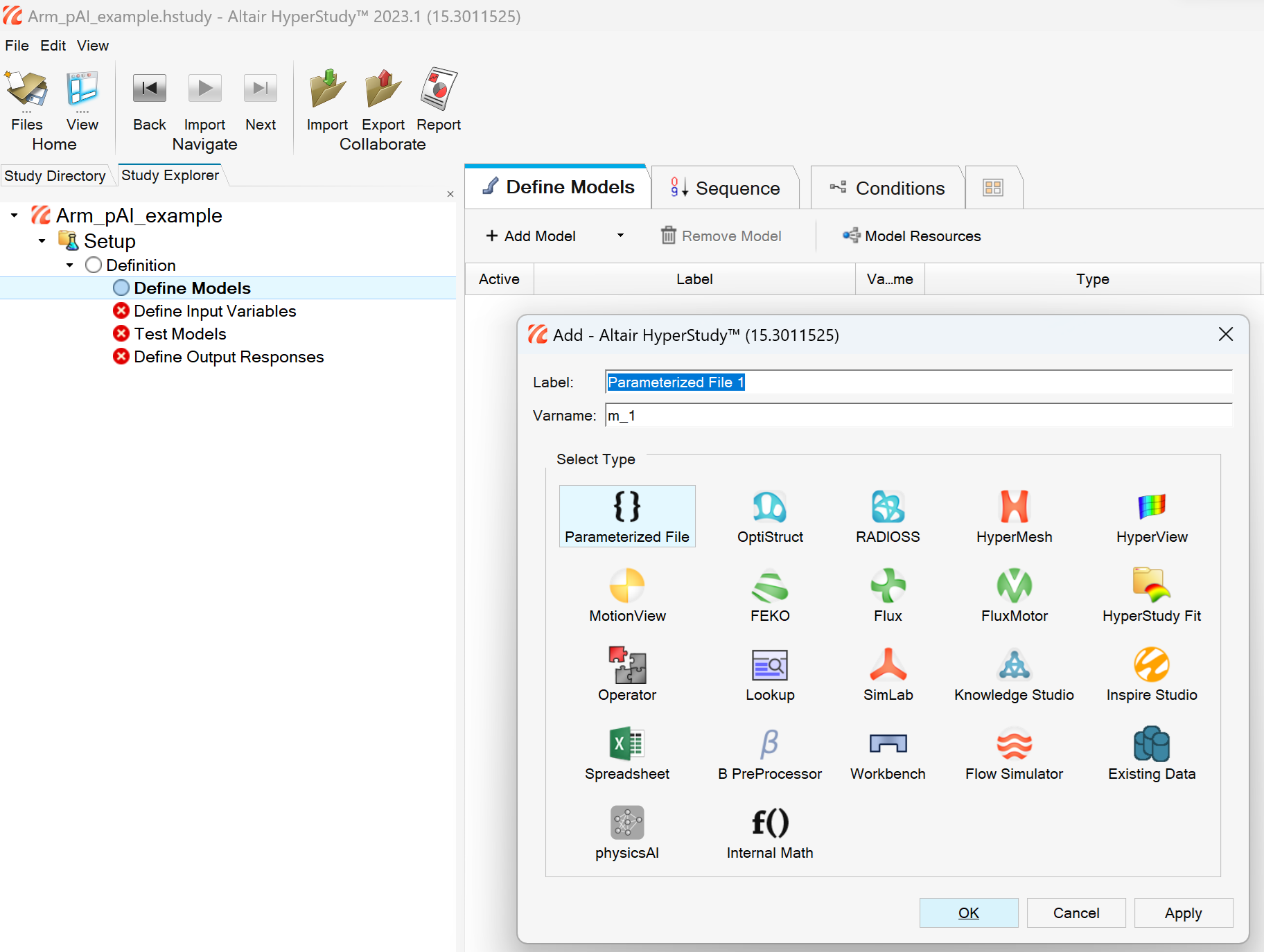

    Figure 1.
  3. In the Resource field, click on the button and select the arm_model.tpl file.
    The Editor window opens. Press OK to close it.
  4. In the Solver Input File field, enter arm_model.fem and press Enter.

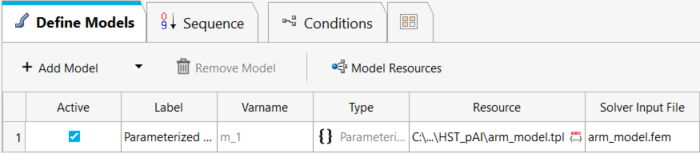

    Figure 2.
  5. Click the Import Variables button.
  6. From the Model tree, select to open the Test Models tab.
  7. Click the Run Definition button.
