SLOT


SLOT – DESIGN - design area

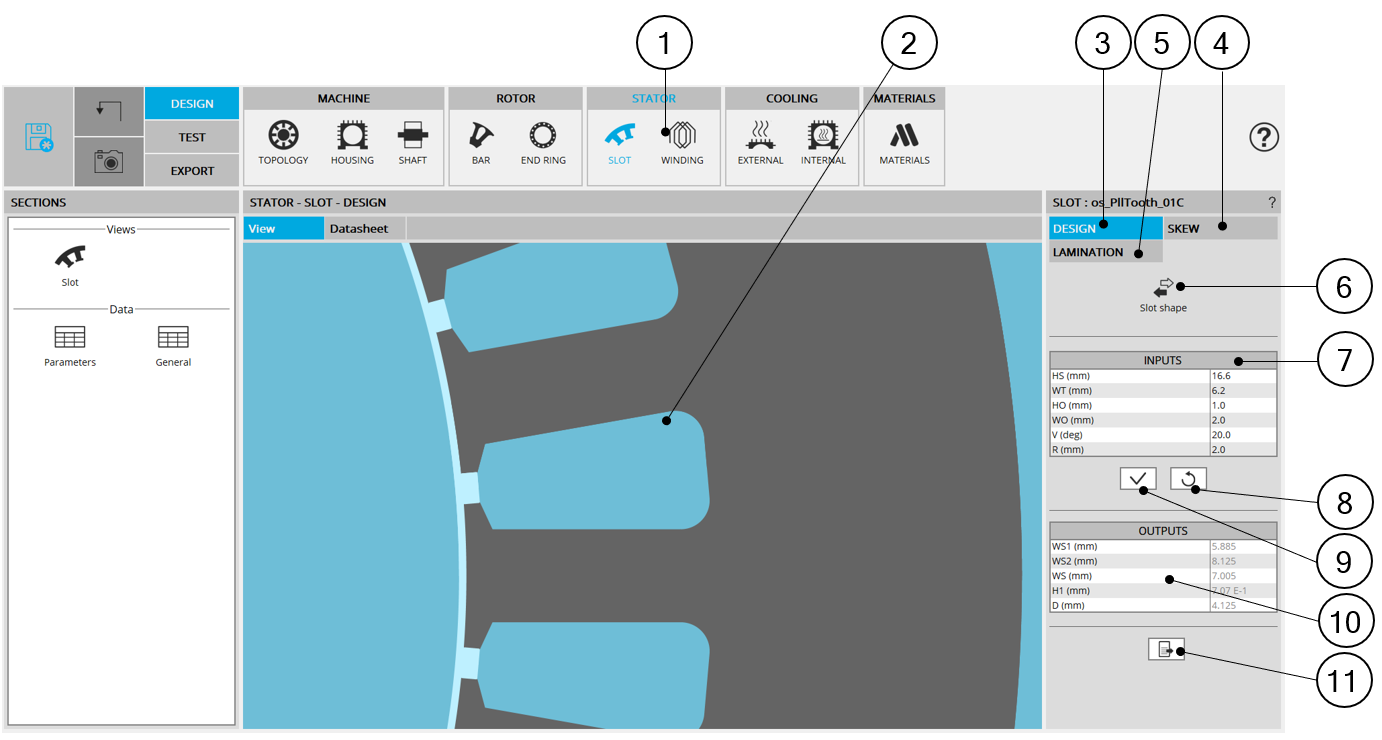

1	Selection of the STATOR subset: SLOT panel (Click on the icon SLOT)
2	Visualization of the motor radial view with slot topology and dimensions.
3	DESIGN tab indicates the tools to define the slot topology and parameter values Note: By default, DESIGN tab is selected
4	SKEW tab indicates the tools to define the slot skew angle
5	LAMINATION tab indicates the tools to define the shape of the lamination. Note: By default, Circular lamination is selected.
6	"Slot shape" button allows accessing to the slot libraries to change the slot topology. See additional information below.
7	User input parameter fields to enter the values.
8	Button to restore default input values.
9	Button to apply inputs. Pressing the “enter key” twice applies inputs too.
10	Output parameters (read only data) to complete the description of the topology.
11	Icon to export slot data into .txt or .xls files.

SLOT – DESIGN - design area

1

Selection of the STATOR subset: SLOT panel (Click on the icon SLOT)

2

Visualization of the motor radial view with slot topology and dimensions.

3

DESIGN tab indicates the tools to define the slot topology and parameter values

Note: By default, DESIGN tab is selected

4

SKEW tab indicates the tools to define the slot skew angle

5

LAMINATION tab indicates the tools to define the shape of the lamination.

Note: By default, Circular lamination is selected.

6

"Slot shape" button allows accessing to the slot libraries to change the slot topology.

See additional information below.

7

User input parameter fields to enter the values.

8

Button to restore default input values.

9

Button to apply inputs. Pressing the “enter key” twice applies inputs too.

10

Output parameters (read only data) to complete the description of the topology.

11

Icon to export slot data into *.txt or *.xls files.
