Store

1. Introduction

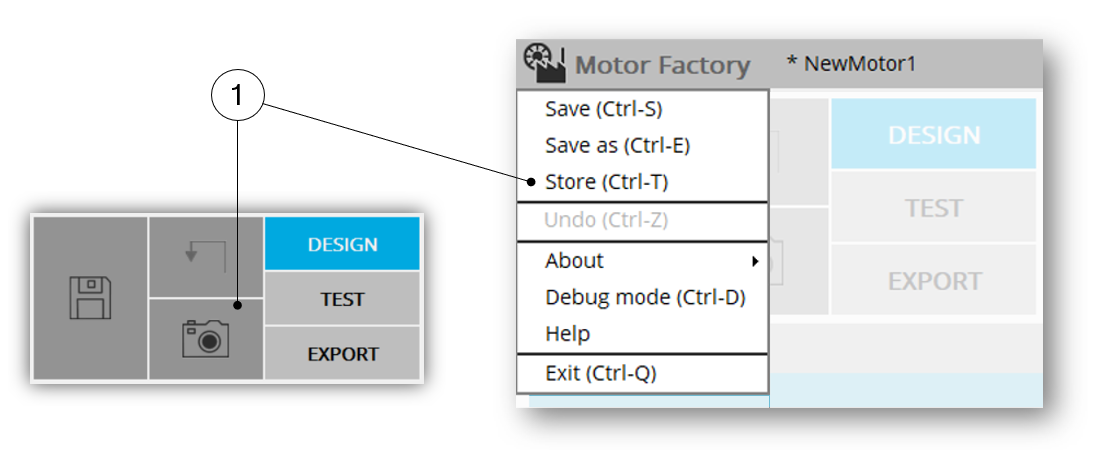

STORE” a project is possible directly from the top part of the Motor Factory (by using the camera) or via the top expanded menu.



“STORE” a project

In any case, user has to give a new name of the motor and select an existing catalog in which the motor will be stored.

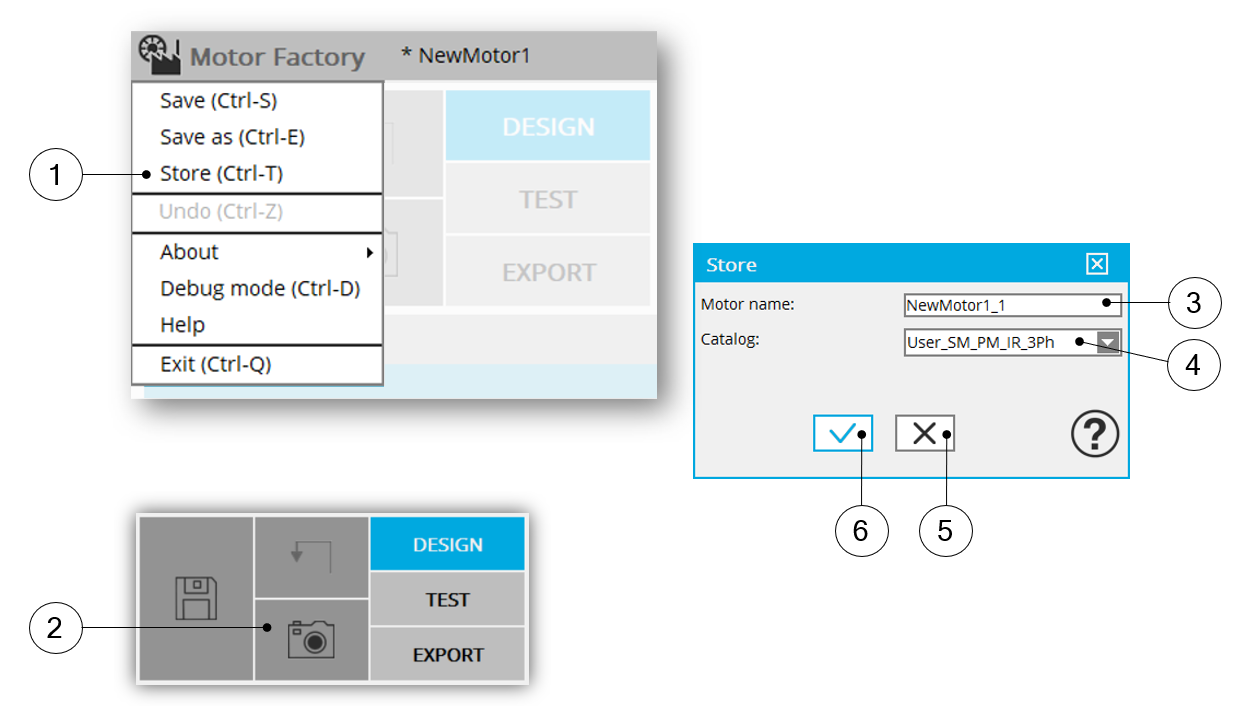

1	Access the top menu of Motor Factory to access the “STORE” function.
2	“STORE” the project by using the Camera located at top part of the Motor Factory.
3	Give a new name to the project.
4	Select an existing catalog in which the motor will be stored.
5	Button to cancel action and close the panel.
6	Button to apply inputs and close the panel.

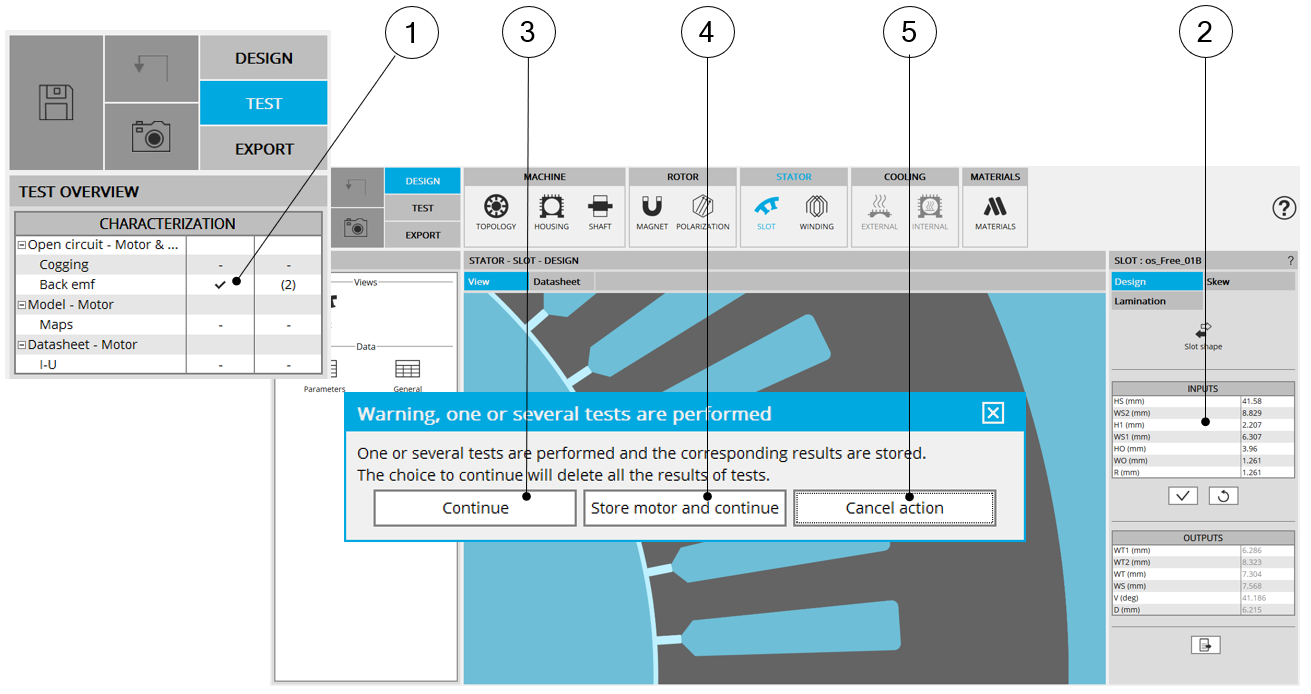

The conditions to use this function are described below.



1	One or several tests are performed.
2	Modification in DESIGN dealing with dimensions topology etc
3	“ Continue ” removes test results and considers the new modification and keeps the current name of the project.
4	“ Store motor and continue ” allows the user to first store the current motor and then continue the design on the current motor. The stored motor keeps the test results The current motor loses the test results thus allowing the modification of the design parameters See the dialog box which allows the storage of the motor below.
5	“ Cancel action ” closes the dialog box. Previous modifications are cancelled.

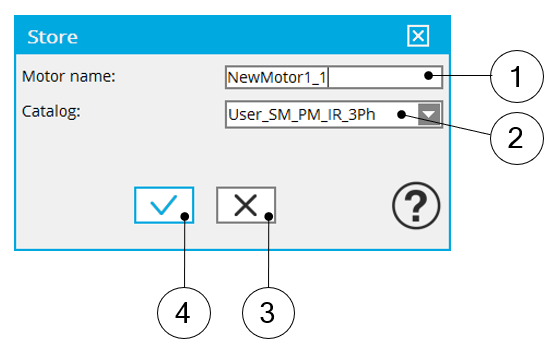

Dialog box allowing to store a motor
1	Give a new name to the project.
2	Select an existing catalog in which the motor will be stored.
3	Button to cancel action and close the panel.
4	Button to apply inputs and close the panel.
