Create Predefined Report

In this tutorial, you will learn how to create, execute, and export predefined report using the Report ribbon options- Session Report and Model Summary Report.
Note: This tutorial is applicable only for HyperMesh client.
Before you begin, copy the file(s) used in this tutorial to your working directory:
  1. Start HyperMesh.
  2. Open the Report ribbon.
  3. From the menu bar, select File > Session > Open.
    The Open Session File dialog opens.
  4. Browse and select the Report_Tutorial_Session.mvw file.
    The file opens in the graphics window.
  5. From File menu, click Preferences.
  6. Select Report from Common section.
    Figure 1.
  7. Edit the Default Report Type and Document Layout preferences.
  8. From the Predefined group, click .

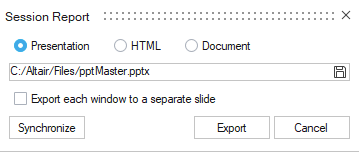

    Figure 2.
  9. Select the type of the report: Presentation, HTML or Document.
  10. Click Export
    The Session Report is saved in the given directory.
  11. From the Predefined group ribbon, click Model Summary.
    Figure 3.
  12. Select the Model Description details as applicable.
    Figure 4.
  13. Optional: Click Interactive for interactive report generation.
    Figure 5.
    Note: The report tree should be active for Interactive Report generation.
  14. Click Export.
    The Model Summary report is saved in the given directory.
