Attachments

3. Attachments

Documents can be attached to User’s libraries. That allows quickly reaching the additional information to describe these libraries.

Note: Documents can be attached only to user’s libraries.

Note: Documents can be linked to libraries as well as to parts. See chapter Management of parts.

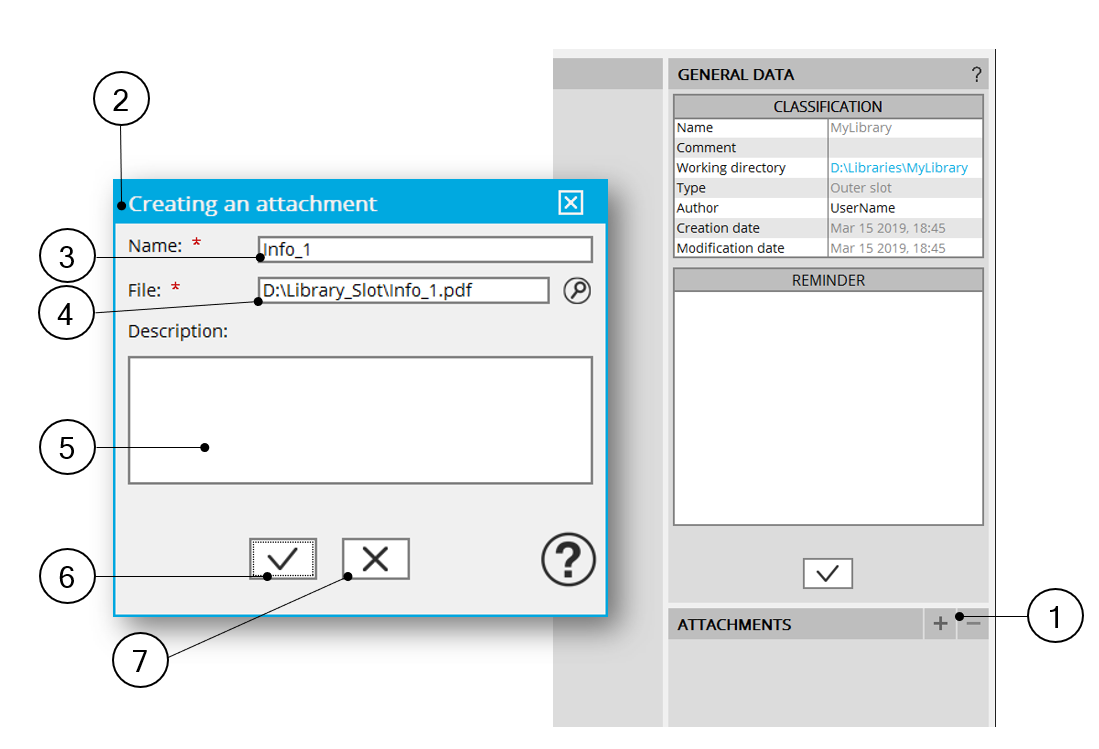

Creation of an attachment
1	Button (+) to add an attached document.
2	A dedicated dialog box allows adding a new attached document. All kind of documents can be attached (like word, excel, pdf or text files, pictures, etc.).
3	Give a name to the attached document.
4	Select the folder in which the document to be attached is going to be stored.
5	It is possible to write a reminder dealing with the attached document.
6	Button to apply inputs, create the new attachment and close the dialog box.
7	Button to cancel the creation of the attachment.

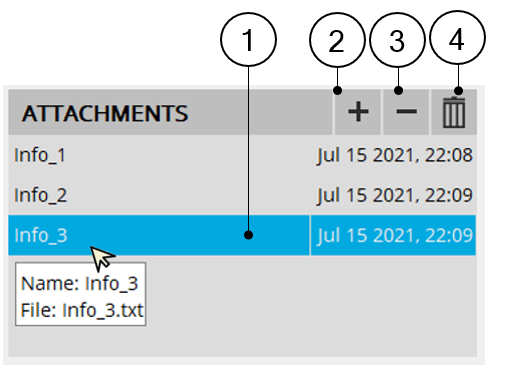

Management of attachments
1	Selection of an attached document. Once selected, a tooltip reminds the name and the description of the selected document.
2	Button (+) to add an attachment (see the previous section).
3	Button (-) to remove one or several attachments.
4	Button for removing the selected attached file.
