Compare

1. Compare

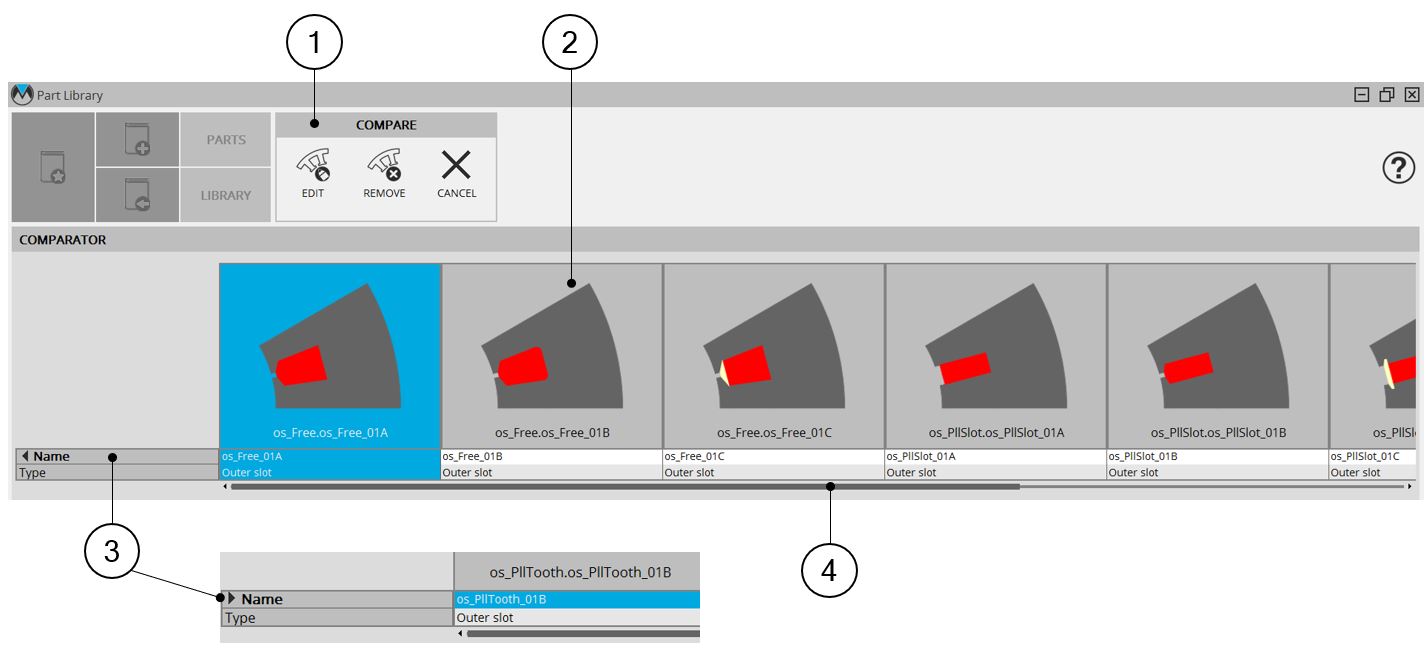

Here is the environment of the comparator of parts.
Tools to select and compare the parts
1 Box of tools to manage the selected parts into the comparator.
  • EDIT: The selected part (one part) can be edited into Part Factory.

  • Edit a part allows modifying its geometrical properties by using the functions of Part Factory.

    See the chapter edit a part for more details.

  • REMOVE: The selected part is removed from the comparator.
  • CANCEL: To close the comparator and get back to Part Library environment.
2 All the selected parts are presented to help with the comparison. The name and the type are displayed.
3 Clicking on the name field allow arranging the parts alphabetically. The black arrow shows the order retained.
4 A scroll bar allows visualizing all the parts.
