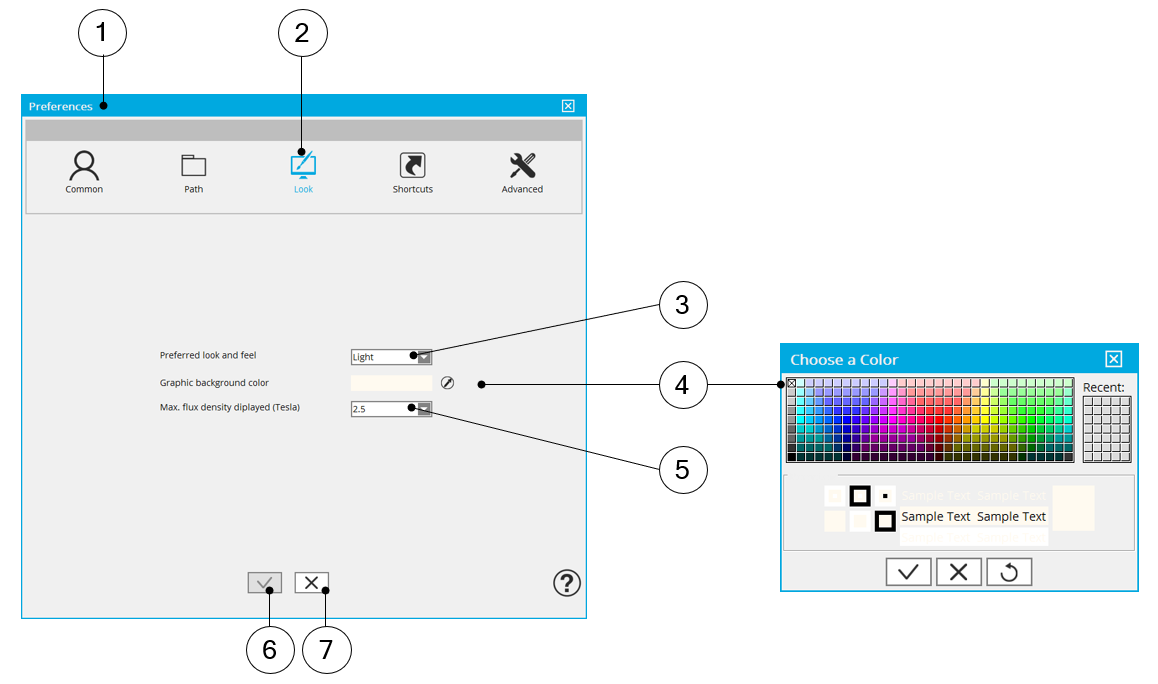

| Look Preferences Screen |
| 1 |
The Preferences dialog box is opened from the
Altair FluxMotor™ Supervisor. |
| 2 |
Third tab is Look Preferences. |
| 3 |
Two types of look and feel are available in the current version:
Dark and Light. |
| 4 |
Graphic background color changes for the Motor
Factory and Part Factory
areas. |
| 5 |
Maximum magnitude of the displayed flux density for visualizing
the flux density into the magnetic circuit. The default value is
2.5 Tesla. |
| 6 |
Button to apply changes and close the Preferences
dialog box. |
| 7 |
Button to close the Preferences dialog box
without applying the changes. |
