HOUSING
Housing - Overview
 |
|

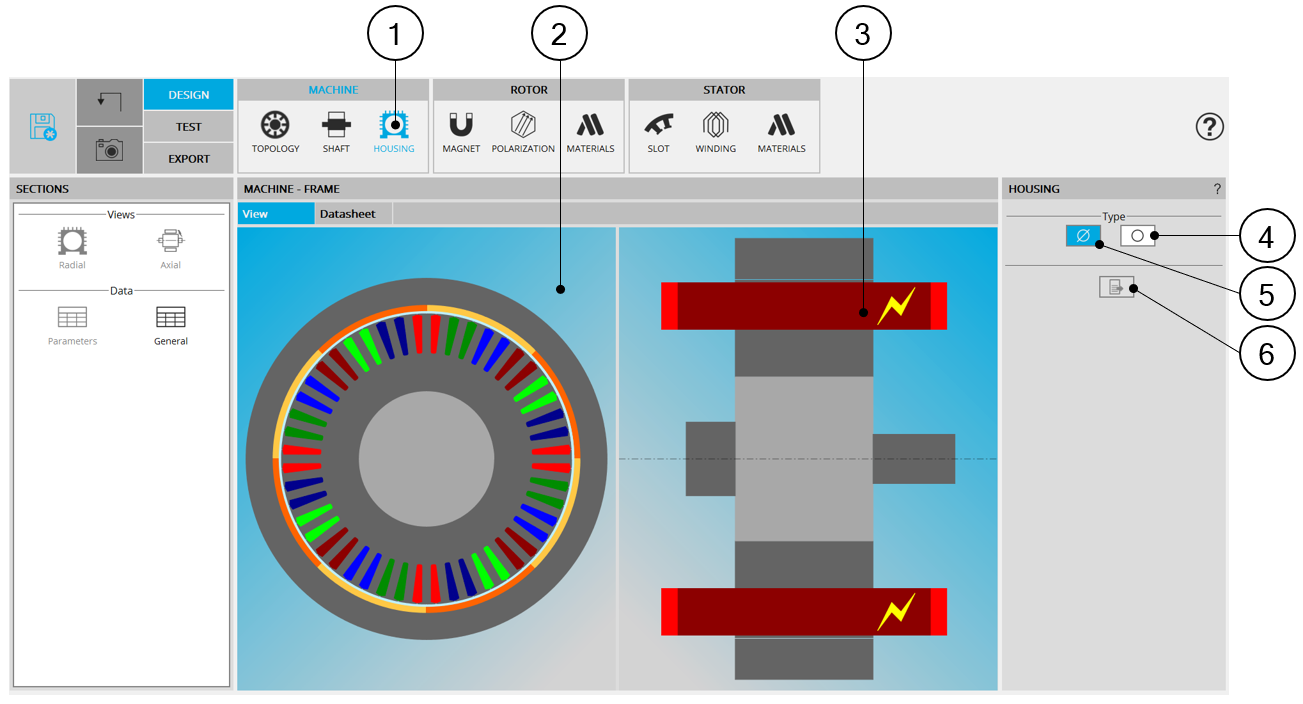

| HOUSING design area | |
| 1 | Selection of the MACHINE subset: HOUSING panel (Click on the icon HOUSING) |
| 2 | Radial view of the motor |
| 3 | Axial view of the motor |
| 4 | Selected button to set a circular shape frame. |
| 5 | Default setting : Housing type is « None » The machine has no frame. |
| 6 | Icon to export frame data into *.txt or *.xls files. |
