Display fix and rotating parts
General view
 |
|

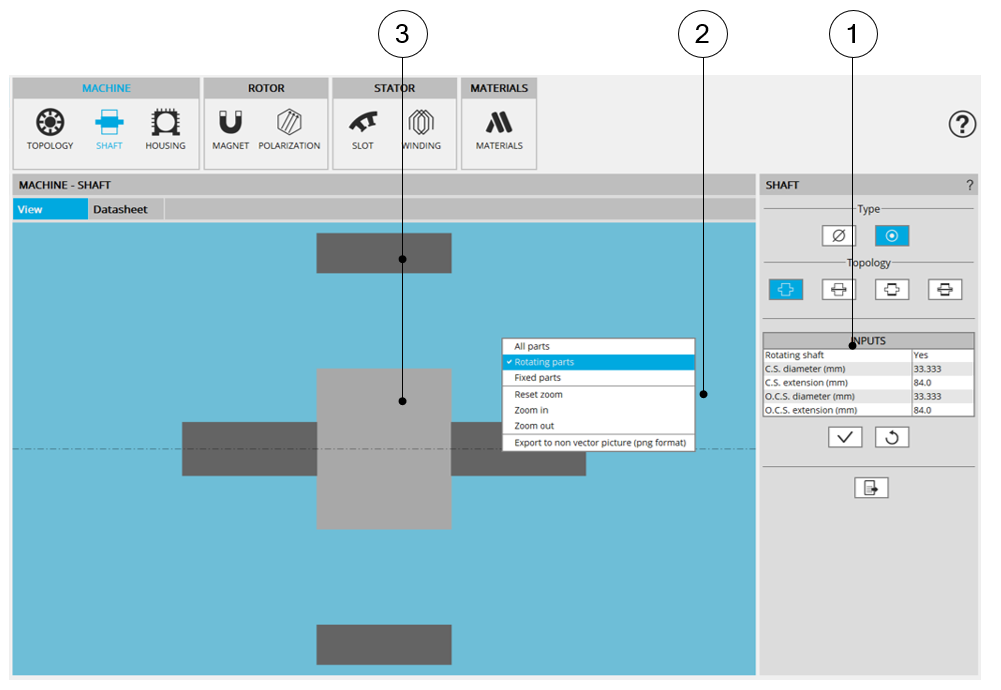

| SHAFT design area – Displaying of parts of the motor | |
| 1 | The shaft is rotating or not |
| 2 | A right-click of the mouse opens a dialog box allowing to display all parts or either Rotating parts or Fixed parts |
| 3 | The parts are displayed considering the previous choice |
