POLARIZATION

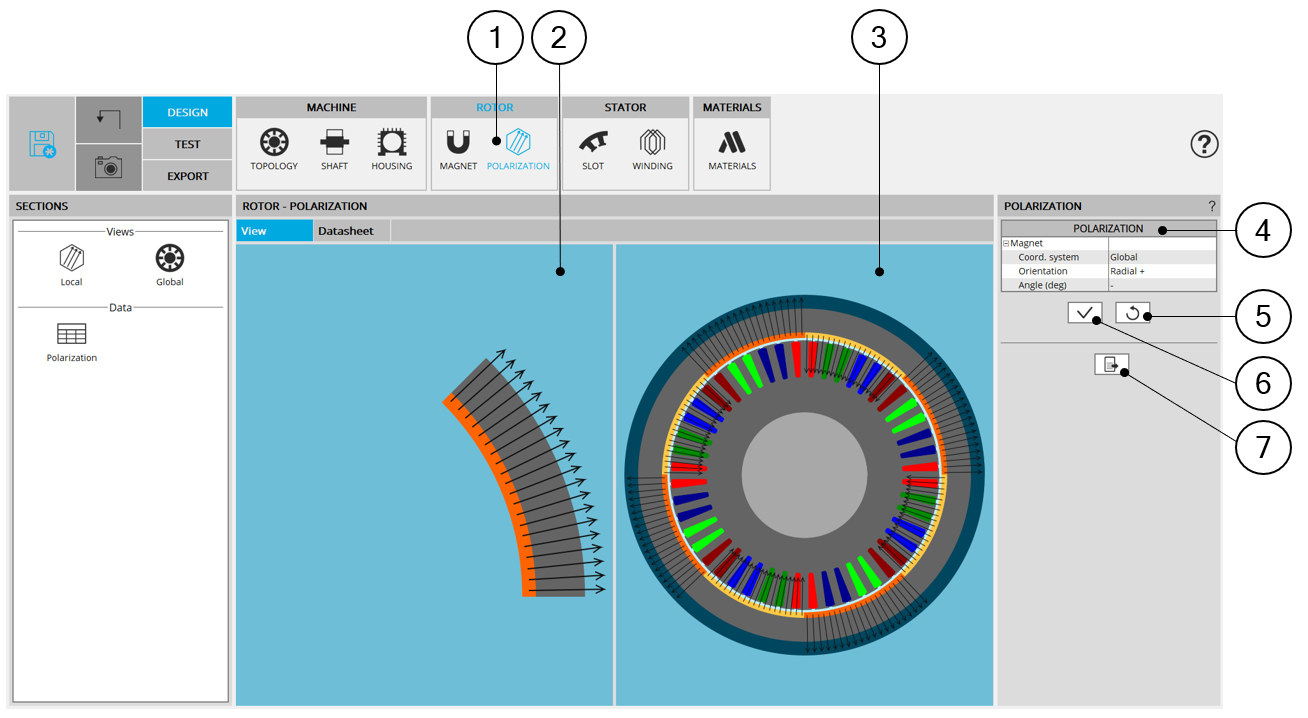

POLARIZATION design area
1	Selection of the ROTOR subset: POLARIZATION panel (Click on the icon POLARIZATION)
2	Visualization of the polarization on one pole.
3	Visualization of the polarization on the whole machine.
4	Area to choose the polarization strategy. Five types of orientation and two coordinate systems and angle are available. See additional information below.
5	Button to restore default input values. Default polarization is defined in Part Factory application via Excel file. See “Part Factory” application for more information.
6	Button to Apply inputs. Pressing the enter key twice applies inputs too.
7	Icon to export polarization data into .txt or .xls files.

POLARIZATION design area

1

Selection of the ROTOR subset: POLARIZATION panel (Click on the icon POLARIZATION)

2

Visualization of the polarization on one pole.

3

Visualization of the polarization on the whole machine.

4

Area to choose the polarization strategy.

Five types of orientation and two coordinate systems and angle are available. See additional information below.

5

Button to restore default input values.

Default polarization is defined in Part Factory application via Excel file.

See “Part Factory” application for more information.

6

Button to Apply inputs. Pressing the enter key twice applies inputs too.

7

Icon to export polarization data into *.txt or *.xls files.
