HOUSING

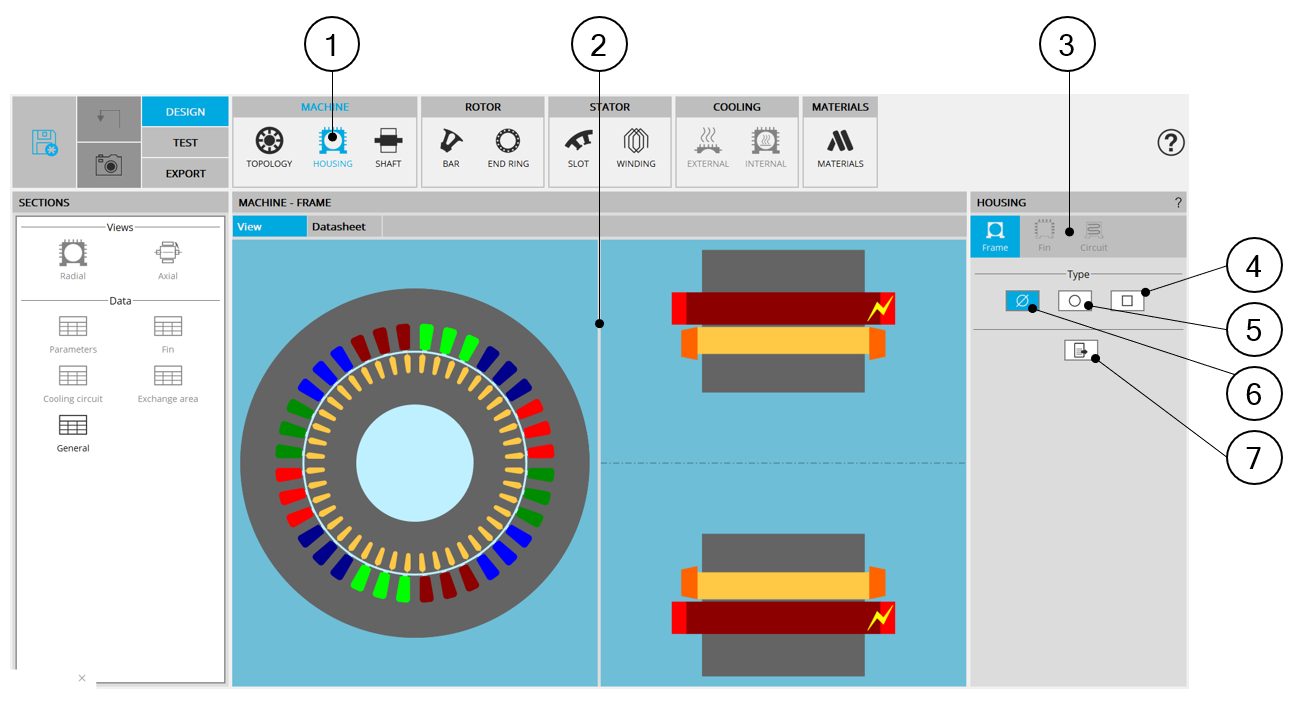

HOUSING design area
1	Selection of the MACHINE subset: HOUSING panel (Click on the icon HOUSING)
2	Radial and axial view of the motor.
3	Several sections allow defining all characteristics which are dealing with the Housing: Frame, Fin and Cooling circuit. Note: By default, the section Frame is selected.
4-5-6	Three choices are available to define the lamination topology: None, Circular and Square
4	Choice of a square shape lamination. See additional information below
5	Choice of a circular shape lamination. See additional information below
6	Choice of “None” meaning that the outer shape of lamination is circular without extensions. Outer dimensions of lamination are indicated in general data (structural data part).
7	Icon to export lamination data into .txt or .xls files.

HOUSING design area

1

Selection of the MACHINE subset: HOUSING panel (Click on the icon HOUSING)

2

Radial and axial view of the motor.

3

Several sections allow defining all characteristics which are dealing with the Housing: Frame, Fin and Cooling circuit.

Note: By default, the section Frame is selected.

4-5-6

Three choices are available to define the lamination topology:

None, Circular and Square

4

Choice of a square shape lamination. See additional information below

5

Choice of a circular shape lamination. See additional information below

6

Choice of “None” meaning that the outer shape of lamination is circular without extensions. Outer dimensions of lamination are indicated in general data (structural data part).

7

Icon to export lamination data into *.txt or *.xls files.

HOUSING

Housing - Overview
