Management of inputs

Management of inputs - Overview

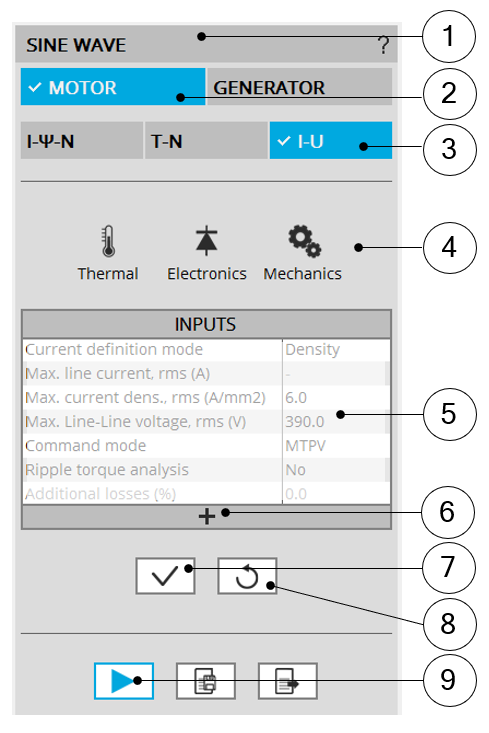

 1 Name of the test package
2 Selection of the operating mode: Motor or Generator.
3

Button to select the test to perform, when several tests are available in the test package.

The check mark n indicates that the results are available.
4
Defining test settings: General conditions relative to the machine:
  • Active component temperatures (winding, magnet)
  • Electronics
  • User Mechanical loss model parameters

For more information, please see “Test settings” section
5 User input parameters to be defined.
6 Click on (+) to displayed advanced parameters when needed
7 Button to apply input parameter values.
8 Button to restore default parameter values.
9 Button to start running the test (Input parameters are validated after clicking this button).

For more details see the section dedicated to test functions.
