Shaft inputs
Shaft type
Two types of shaft can be selected:
-

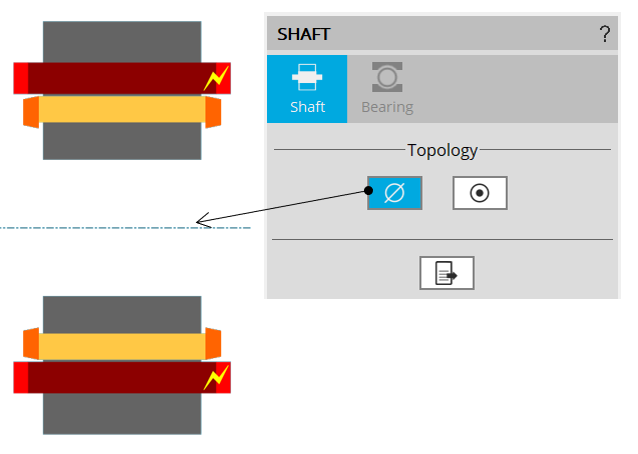

None: A shaft is not represented in the rotor design. It is replaced by a fluid (like air)
-

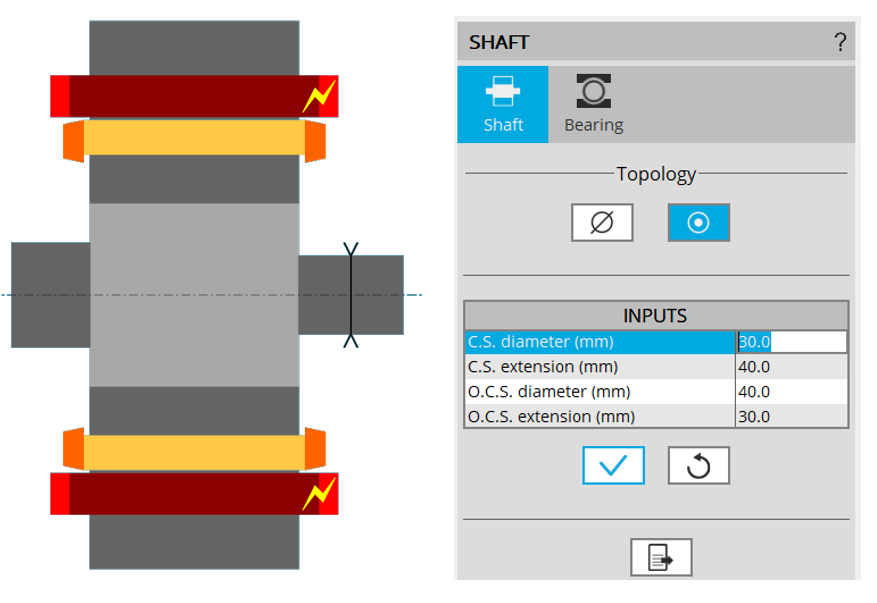

Solid: Shaft is represented and considered in the rotor design. It is built with a solid material or laminations
 |
 |
| Shaft type: None | Shaft type: Solid |
 |
 |

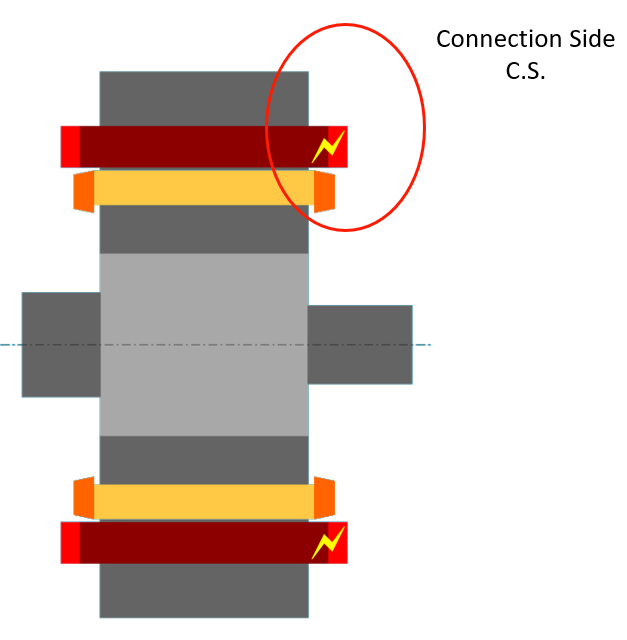

| Dimensions are illustrated with arrows | Connection side (C.S.) is identified by yellow lightning |
Inputs
| Label | Symbol | Tooltip, note, formula |
| C.S. diameter | D1 | Connection side end-shaft diameter. |
| C.S. extension | L1 | Connection side end-shaft extension. |
| O.C.S. diameter | D2 | Opposite connection side end-shaft diameter. |
| O.C.S. extension | L2 | Opposite connection side end-shaft extension. |
