Radiation - Inputs

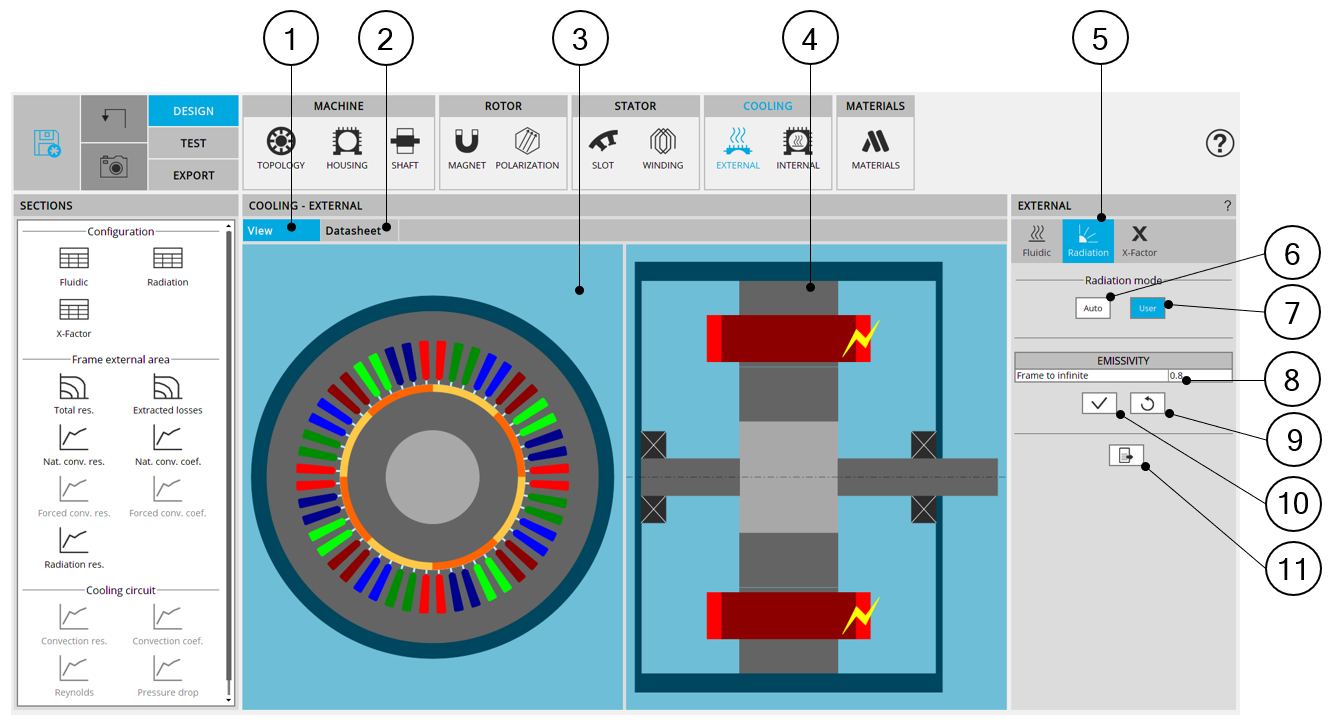

External cooling - Radiation design area
1	Display the axial and radial view of the machine.
2	Display the external cooling datasheet, showing the main thermal parameters of the frame cooling.
3	Radial view of the motor, where specific exchange areas can be highlighted depending of the selected input.
4	Axial view of the motor, where specific exchange areas can be highlighted depending of the selected input.
5	The section radiation is selected.
6	Button to set the external emissivity of the frame by automatic process.
7	Selected button, to set the external emissivity of the frame manually
8	Input related to the radiation corresponding to the selected radiation mode. In user mode, only the Frame to infinite emissivity must be define. The default value is 0.8.
9	Button to restore default input values.
10	Button to apply inputs. Pressing the enter key twice applies inputs too.
11	Icon to export external cooling data into .txt or .xls files.

External cooling - Radiation design area

1

Display the axial and radial view of the machine.

2

Display the external cooling datasheet, showing the main thermal parameters of the frame cooling.

3

Radial view of the motor, where specific exchange areas can be highlighted depending of the selected input.

4

Axial view of the motor, where specific exchange areas can be highlighted depending of the selected input.

5

The section radiation is selected.

6

Button to set the external emissivity of the frame by automatic process.

7

Selected button, to set the external emissivity of the frame manually

8

Input related to the radiation corresponding to the selected radiation mode. In user mode, only the Frame to infinite emissivity must be define.

The default value is 0.8.

9

Button to restore default input values.

10

Button to apply inputs. Pressing the enter key twice applies inputs too.

11

Icon to export external cooling data into *.txt or *.xls files.

Radiation inputs
