Rename
 |
|

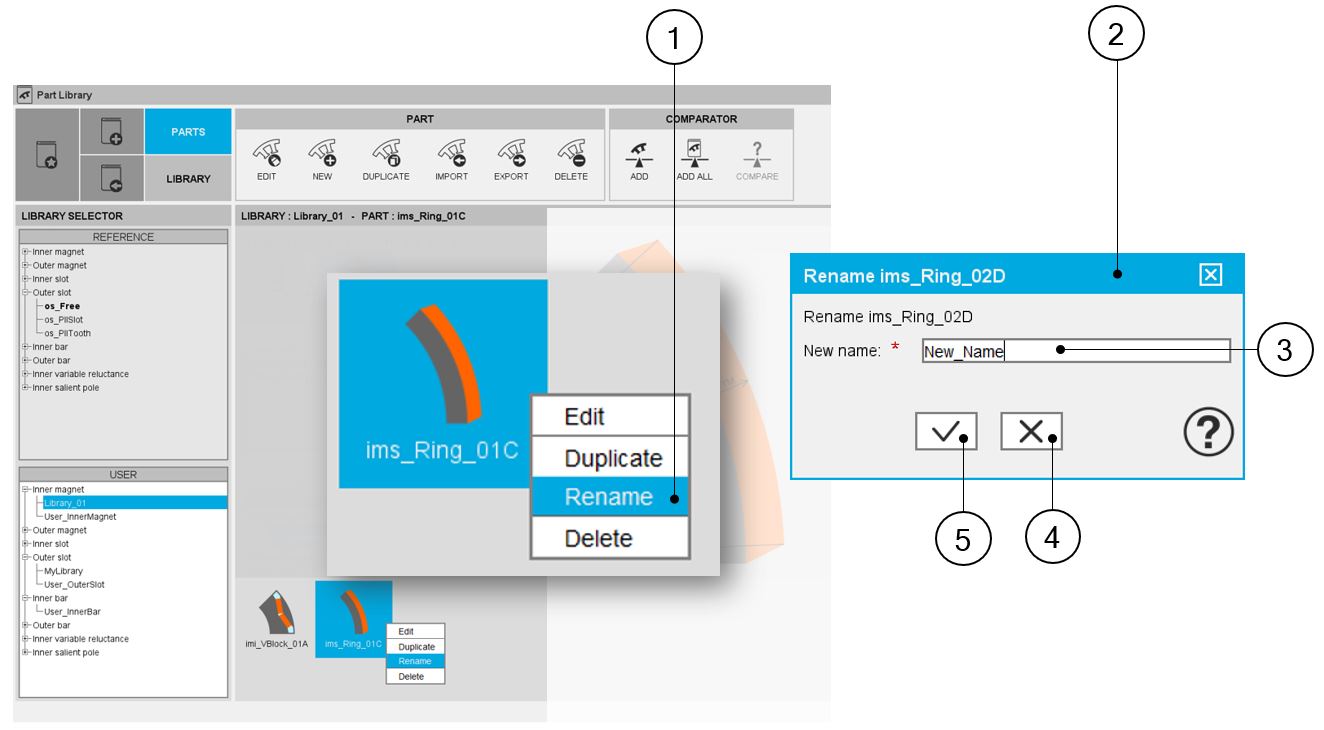

| How to rename a part? | |
| 1 | Right Click on the part to be renamed. |
| 2 | The dialog box is opened to allow renaming of the selected part. |
| 3 | Give a new name to the selected part (a name which is not already used in Part Library). |
| 4 | Button to close the dialog box and to cancel the renaming of the part. |
| 5 | Button to apply inputs, rename the part and close the dialog box. |
