Hotspot Finder API Structure

This topic will help you understand the workflow of building and running a hotspot search and eventually showing the results.

Hotspot Finder APIs

Using the hotspot search, you can find hotspots in a model based on filtering rules and a logical combination of such rules.

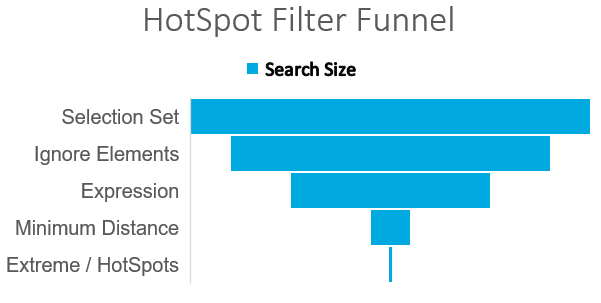

Data filtering rules for Selection set, ignoring specific element types, threshold values, maintaining a minimum distance between hotspots and limiting the search to a number of extreme top or bottom values.
The rules can be used in sequence using a keyword THEN and also you can get a combined effect using boolean logic based on AND, OR and brackets.
These APIs will work in v2020 and all future releases.

Note: Before using these APIs, make sure that a model is loaded in HyperView and scalar contour is plotted.

Display the hotspots or a given entity in one of the best view modes.

Global views provide you with a perspective of the all the hotspots in the reference of entire model, in an isometric view.

You can chose to automatically hide unwanted components from global views.

Global View

Shows all of the hotspots.

Default: Shows the entire model and all hotspots.
Figure 5.
Region: Shows only the attached elements around all hotspots, rest of the model is transparent.
Figure 6.
Spheres: Shows only a spherical region around all hotspots, rest of the model is transparent.
Component: Shows only the components with the hotspots, rest of the model is transparent.
Figure 7.

Global Location

Shows only one hotspot with entire model visible.

Component based views help you gain extra insight about the component of the hotspot.

Component Transparency: Shows only one hotspot with its component and contour plot, the rest of the model is transparent.
Figure 9.
Isolate Component: Shows only one hotspot with its component isolated, the rest of the model is hidden.
Figure 10.

Local views help a you gain extra insight on a particular hotspot and the region around it.

You can choose the region size to focus on.

Entity Zoom: The hotspot is shown with its component isolated and zoomed in 3X.
Figure 11.
Transparency: Only the region (spherical) around the hotspot is shown, everything else in the model is transparent.
Figure 12.
Contour: The hotspot is shown with the entire model contoured and zoomed into the hotspot.
Figure 13.
