Inner Salient Pole
Example

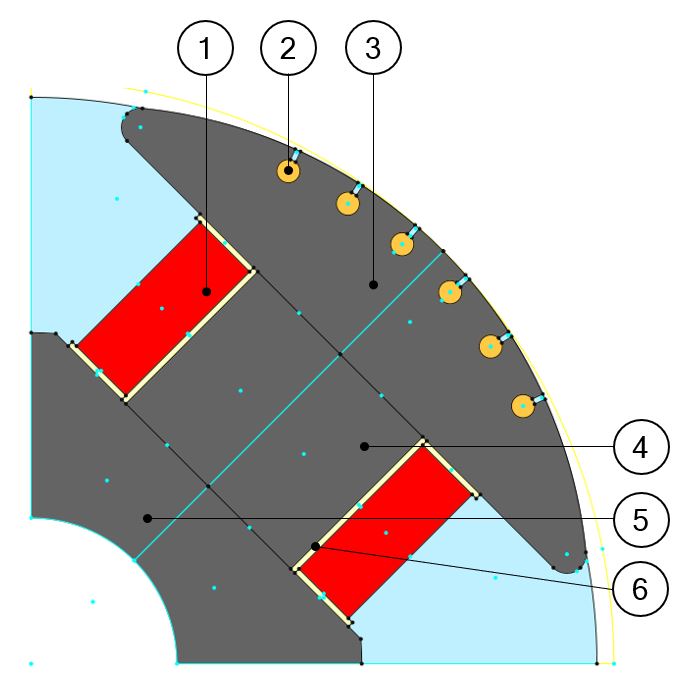

Here is an example of regions in the Inner Salient Pole
 |
|
| Regions for inner salient pole | |
| 1 | Coil conductor |
| 2 | Solid Conductor |
| 3 | Pole shoe |
| 4 | Pole body |
| 5 | Yoke |
| 6 | Pole insulation |
List of possible elementary regions for an inner salient pole.
- Coil conductor
- Solid Conductor
- Pole shoe
- Pole body
- Yoke
- Pole insulation
- Mechanical device to represent rivet for example
- Ferromagnetic wedge
- Hole or Slit
- Cooling hole
