Potting design

1. Overview - Definitions

“Potting” section is available only when the housing is defined with a frame (circular or square shape).

Building the winding – Definition of the topology and dimensions of the potting around the end-winding

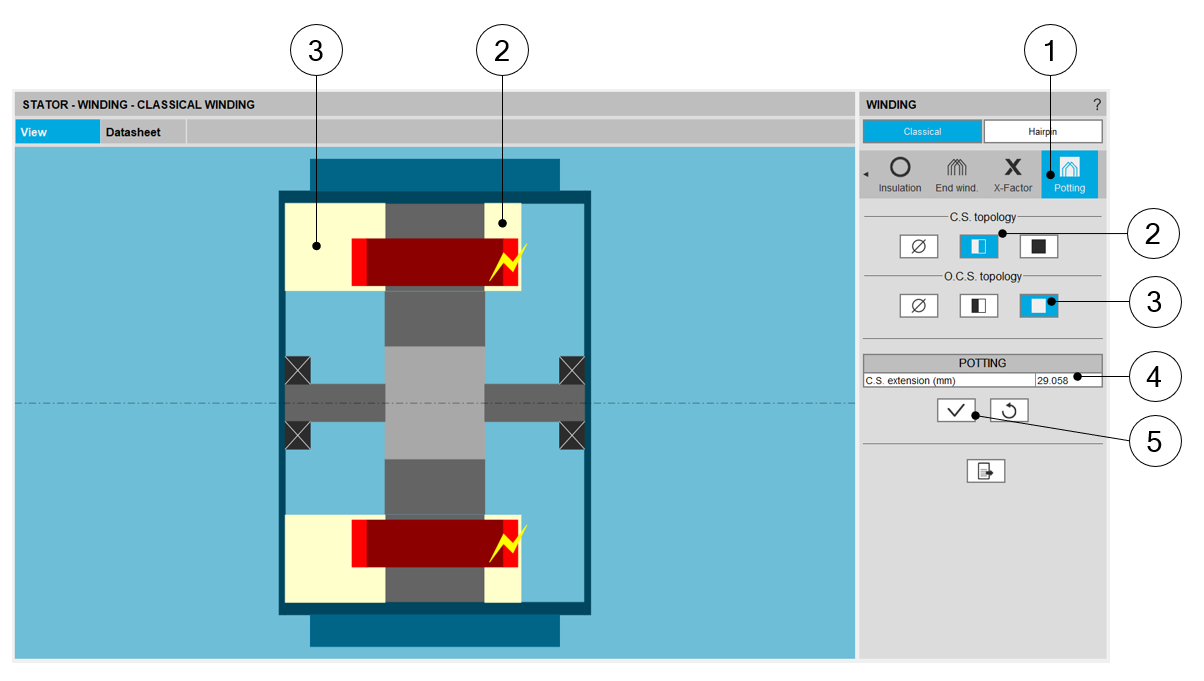

1	Selection of the Potting section.
2	Button to define a potting with only radial contact.
3	Button to define a potting with radial and axial contacts.
4	Extension of potting with radial contact only.
5	Button to apply inputs. Apply is needed to modify the characteristics.
