Expert mode - Table

1. Expert mode dialog box
Building the winding architecture – Filling of the connection table

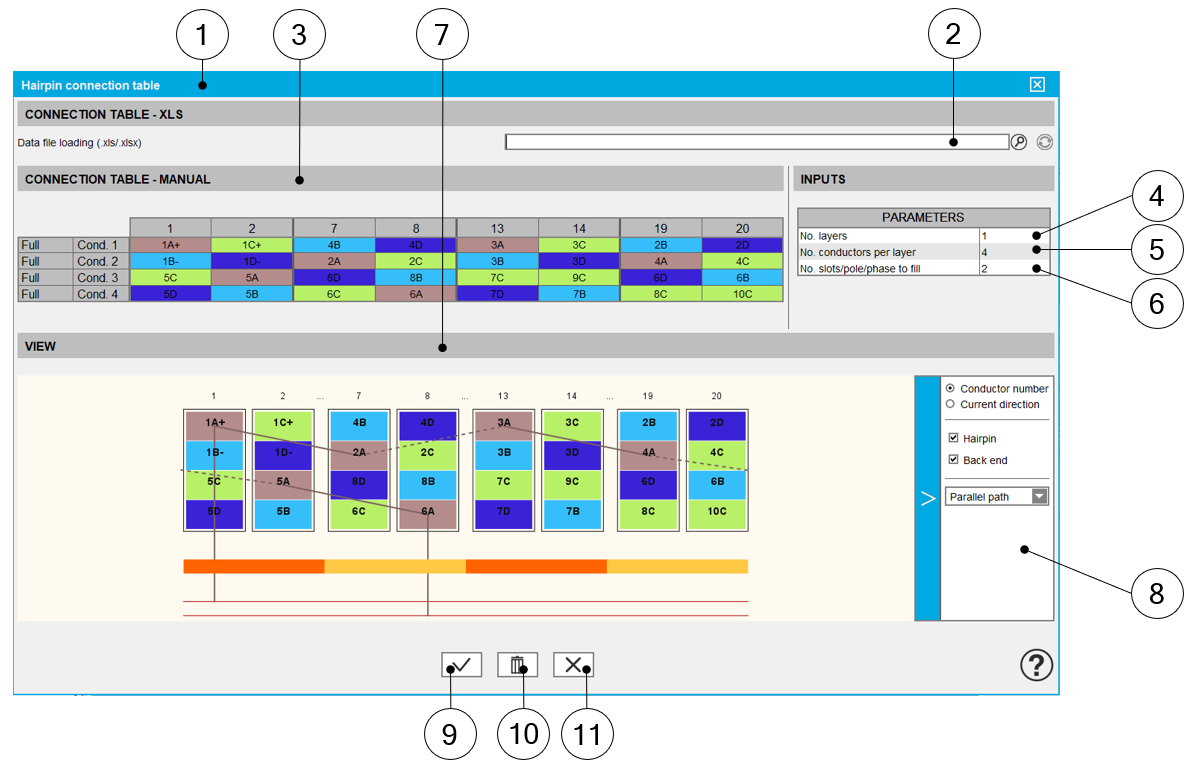

1 Dialog box to define a connection table with expert mode.
2 Box to upload a connection table defined into a *.xlsx file.
3 Box to manually fill a connection table or modify an uploaded one from a *.xlsx file.
4 Selection of the number of layers. Number of layers are limited to 2
5 Number of conductors per layer (This value must be even)
6 Number of slots per pole and per phase to set. No more than 2 times the number of slots per pole and per phase
7 Dynamic view of the hairpin winding updated in real time in function of the filling status of the connection table.
8

Area to customize the view. For each elementary coil set in parallel (A,B,C…):

  • Conductor number or current direction can be plotted
  • Hairpin or/and back-end connections can be displayed or not according to the selected elementary coils in the dialogue box
9 Icon to apply inputs and close the panel.
10 Icon to remove everything in the connection table (Erase connection table data).
11 Icon to cancel action and close the panel.
