Attach a Bushing to the Model

This section describes how you attach a bushing to a model.

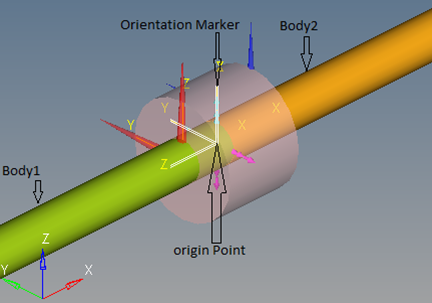

Use the Collector buttons on the panel to select the two bodies the bushing connects, the marker that orients the bushing, and the point that locates the bushing.
図 1.


  1. From the モデルブラウザ in MotionView, select the entity AutoBushFD.
    A panel opens with the bushing information displayed. It includes a Connectivity pane and a Properties pane.
  2. Click Body 1 and Body 2 to select a body from the モデリングウィンドウ, or double-click to select a body from the browser dialog.
  3. Click Marker to select a marker from the モデリングウィンドウ, or double-click to select a marker from the browser dialog. Markers for the X, Y, and Z axes define the bushing’s X, Y, and Z axes.
  4. Click Point 1 to select a point from the モデリングウィンドウ or double-click to select a point from the browser dialog. The point’s location defines the bushing’s location.
